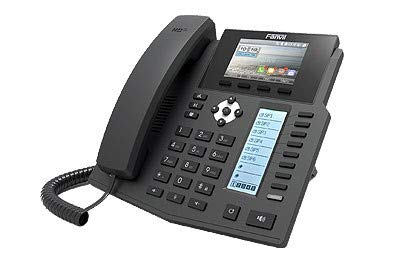

Fanvil X5S

The new Fanvil X5S IP Phone is a high-end enterprise desktop phone which comes with an intelligent DSS Key-mapping LCD to increase enterprise users productivity

- DSS Key-mapping LCD 8 DSS keys corresponded to the LCD display to provide dynamic DSS/BLF functions up to five pages at virtualized total 40 DSS keys
- Gigabit Ethernet 10/100/1000Mbps Ethernet with POE enabled
- Economic and Environmental Friendly design with Elegant Housing, with high-resolution TFT color display, delivering a rich visual experience
- High Interoperability Compatible with major platforms: 3CX, Asterisk, Broadsoft, Elastix

-Touchscreen: N
-Display: LCD
-Display resolution: 480 x 320 pixels
-Display diagonal: 8.89 cm (3.5")

Audio

-Microphone mute: Y
-Voice codecs: AMR-WB, G.711a, G.711u, G.722, G.723.1, G.726, G.729ab, iLBC
-Noise reduction: Y
-Echo cancellation: Y
-Voice activity detection: Y
-Comfort noise generation (CNG): Y
-Packet loss concealment (PLC): Y

Ports & interfaces

-Ethernet LAN (RJ-45) ports: 2
-USB 2.0 ports quantity: 1
-RJ-9 ports quantity: 2
-DC-in jack: Y

Weight & dimensions

-Width: 197 mm
-Depth: 214 mm
-Height: 176 mm
-Package width: 270 mm
-Package depth: 285 mm
-Package height: 65 mm

Power

-Power over Ethernet (PoE): Y
-AC adapter output voltage: 12 V
-AC adapter output current: 1 A
-Power consumption (typical): 1.74 W

Operational conditions

-Operating temperature (T-T): 0 - 40 °C
-Operating relative humidity (H-H): 10 - 95%

Networking

-Ethernet LAN: Y
-Wi-Fi: N
-Bluetooth: N
-Ethernet LAN interface type: Gigabit Ethernet
-Ethernet LAN data rates: 10, 100,1000 Mbit/s
-Supported network protocols: SIP2.0 UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, LLDP
